matplotlib/seaborn: heatmap 히트맵

• sns.heatmap()
• 히트맵 예시

히트맵 예시

• attributes

sns.heatmap(
	fruit_dict,        #values to make heatmap with
	cmap=cmap,         #colormap
	annot=True,        #annotation여부
	linewidths=.5,     #칸 사이사이 줄 두께
	fmt='.1%'          #퍼센트 표시 포매팅
)



example: step by step

#making df
#the amount of packs sold per day in a supermarket
fruit_season = {
    'Watermelon': [54,1037,515,6,34],
    'Strawberry': [936,142,575,2009,56],
    'Orange': [1511,2521,3498,2501,65],
    'Season': ['Spring', 'Summer', 'Autumn', 'Winter','etc']
}

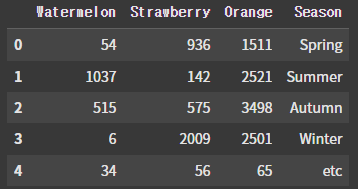

fruit_dict = pd.DataFrame(fruit_season)
fruit_dict

fruit_dict=fruit_dict.set_index('Season')
fruit_dict

#일부 데이터만 뽑아서 히트맵 제작시
season_order= ['Spring', 'Summer', 'Autumn', 'Winter']
fruit_order = ['Watermelon', 'Strawberry']
fruitbySeason = fruit_dict.loc[season_order, fruit_order]
fruitbySeason

#히트맵 제작을 위한 소수점 변환, 한 열을 다 더하면 1이됨
fruitbySeason = fruitbySeason.div((fruitbySeason.sum(axis=0)),axis=1)
fruitbySeason

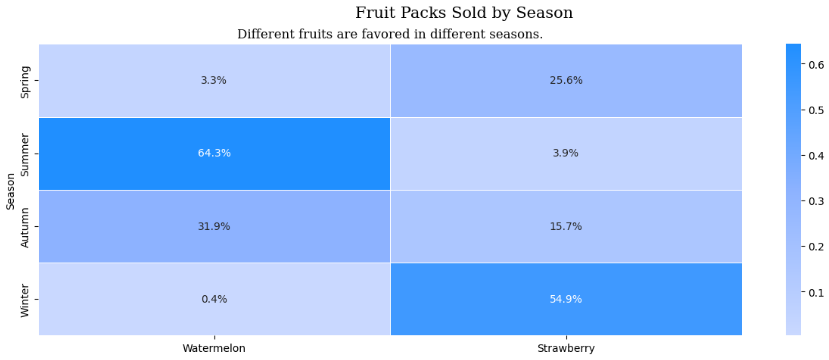

#히트맵 제작
plt.figure(figsize=(15,5))
cmap = plt.matplotlib.colors.LinearSegmentedColormap.from_list("", ['#c9d8ff', '#8cb2ff','#208fff'])

sns.heatmap(fruitbySeason, cmap=cmap, annot=True, linewidths=.5, fmt='.1%')

plt.suptitle('Fruit Packs Sold by Season', fontfamily='serif', fontsize=15)
plt.title('Different fruits are favored in different seasons.', fontfamily='serif', fontsize=12)

plt.show()

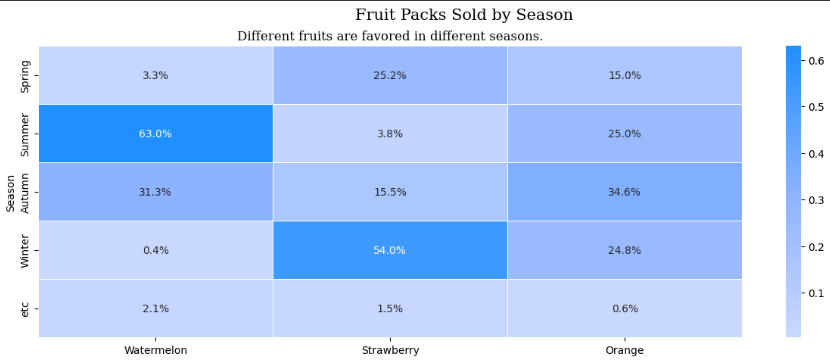

기존 전체데이터로도 히트맵 만들어보기

fruit_dict = fruit_dict.div((fruit_dict.sum(axis=0)),axis=1)
fruit_dict

plt.figure(figsize=(15,5))
cmap = plt.matplotlib.colors.LinearSegmentedColormap.from_list("", ['#c9d8ff', '#8cb2ff','#208fff'])

sns.heatmap(fruit_dict, cmap=cmap, annot=True, linewidths=.5, fmt='.1%')

plt.suptitle('Fruit Packs Sold by Season', fontfamily='serif', fontsize=15)
plt.title('Different fruits are favored in different seasons.', fontfamily='serif', fontsize=12)

plt.show()

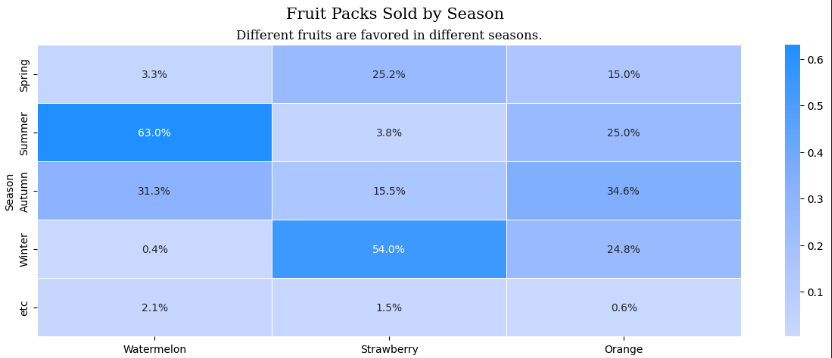

하지만 제목이 어디론가 가고있죠..? 어디가니 너ㅋㅋㅋ 제목 위치를 수정해줍시다

plt.figure(figsize=(15,5))
cmap = plt.matplotlib.colors.LinearSegmentedColormap.from_list("", ['#c9d8ff', '#8cb2ff','#208fff'])

sns.heatmap(fruit_dict, cmap=cmap, annot=True, linewidths=.5, fmt='.1%')

plt.suptitle('Fruit Packs Sold by Season', fontfamily='serif', fontsize=15, x=0.44)
plt.title('Different fruits are favored in different seasons.', fontfamily='serif', fontsize=12)

plt.show()

suptitle에 x= 넣어줌

짜잔
